D1050 1/14 3-Axis RC Hydraulic Crane - Ultimate Heavy Machinery Model!
Unleash your inner adventurer with the Wanderlust Collection – handcrafted leather journals designed to capture your wildest stories and fleeting inspirations. Each journal is a portal, waiting for your brushstrokes, doodles, and heartfelt thoughts. Feel the supple texture beneath your fingertips, and let the journey begin. It’s more than a notebook; it’s a legacy waiting to be written.

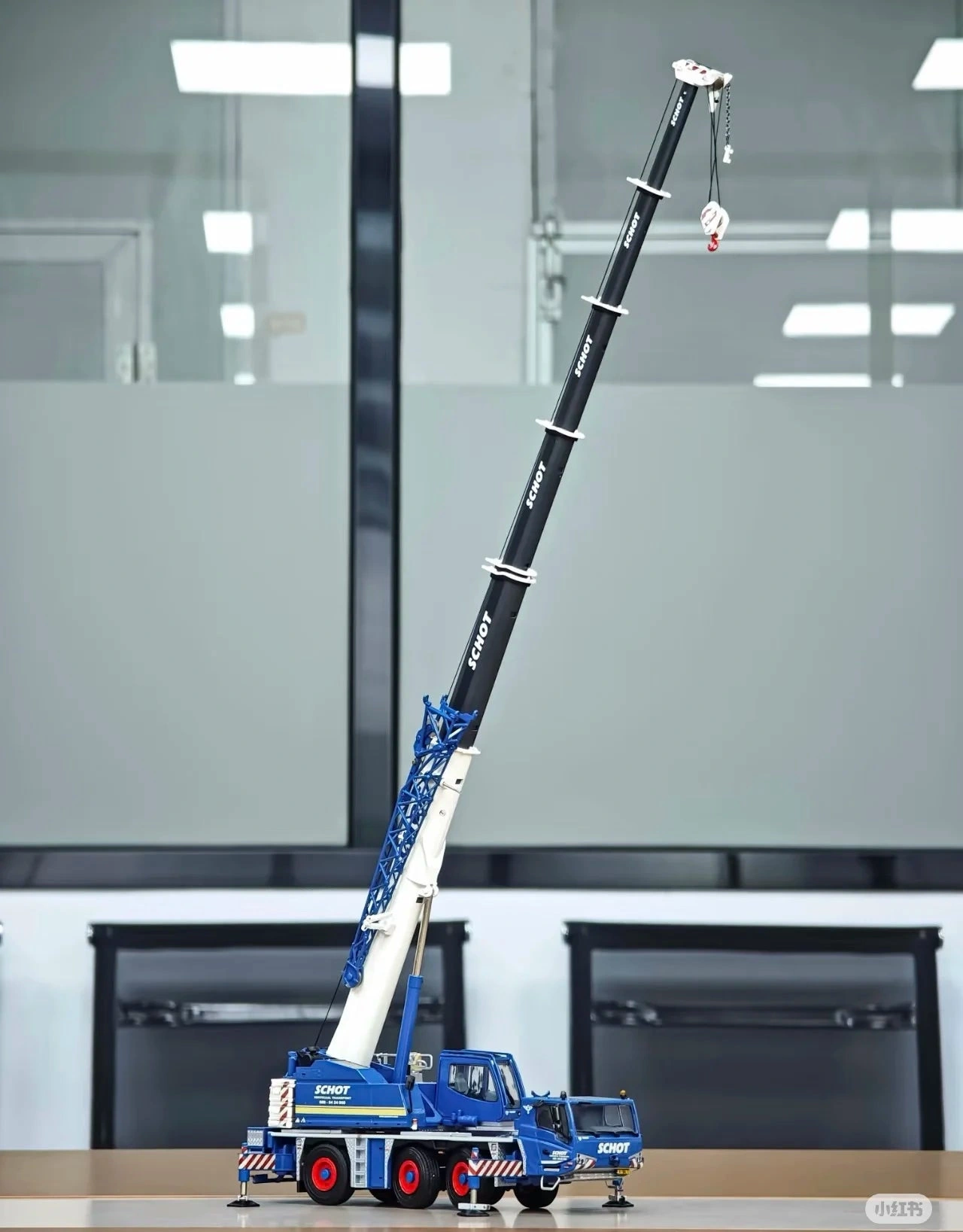

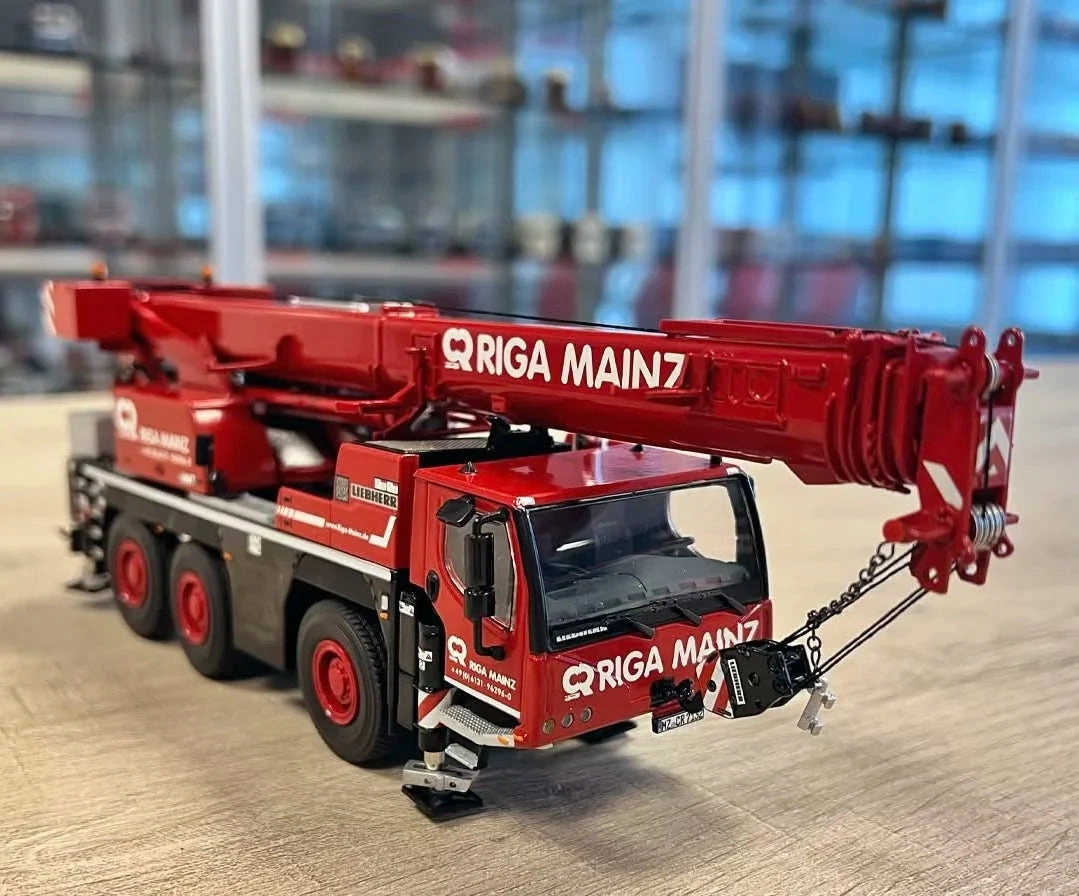

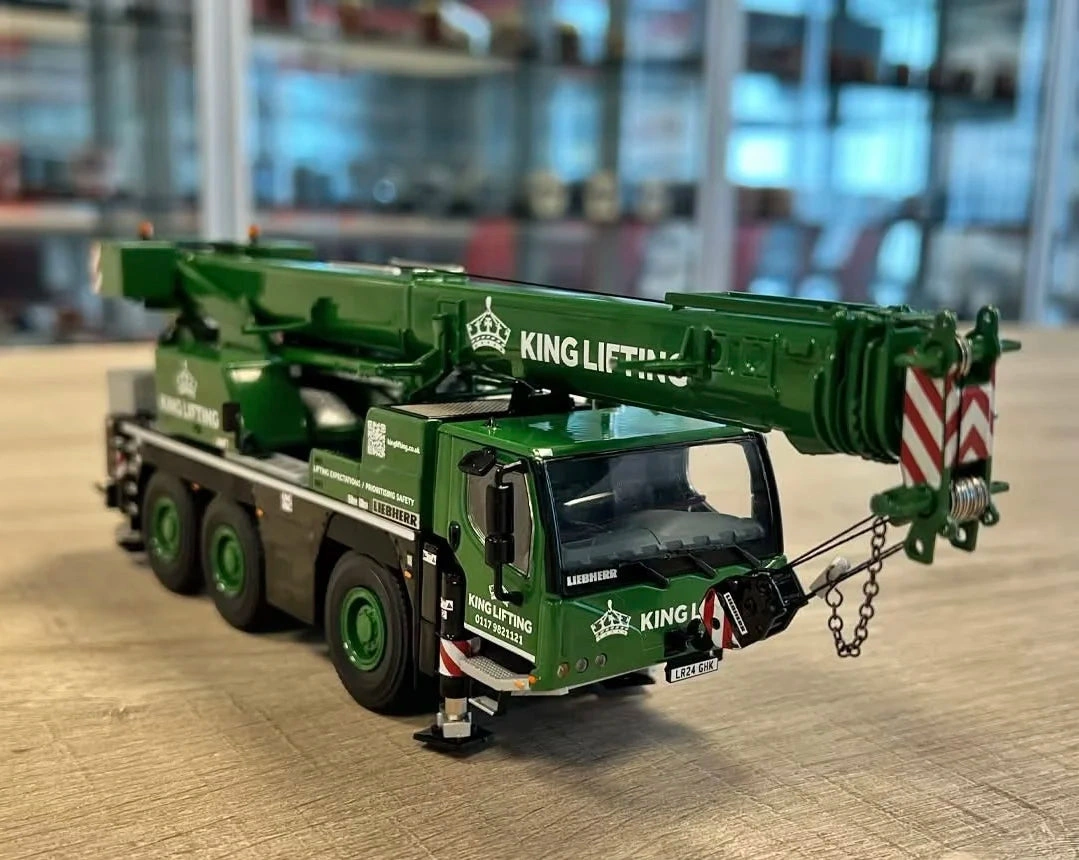

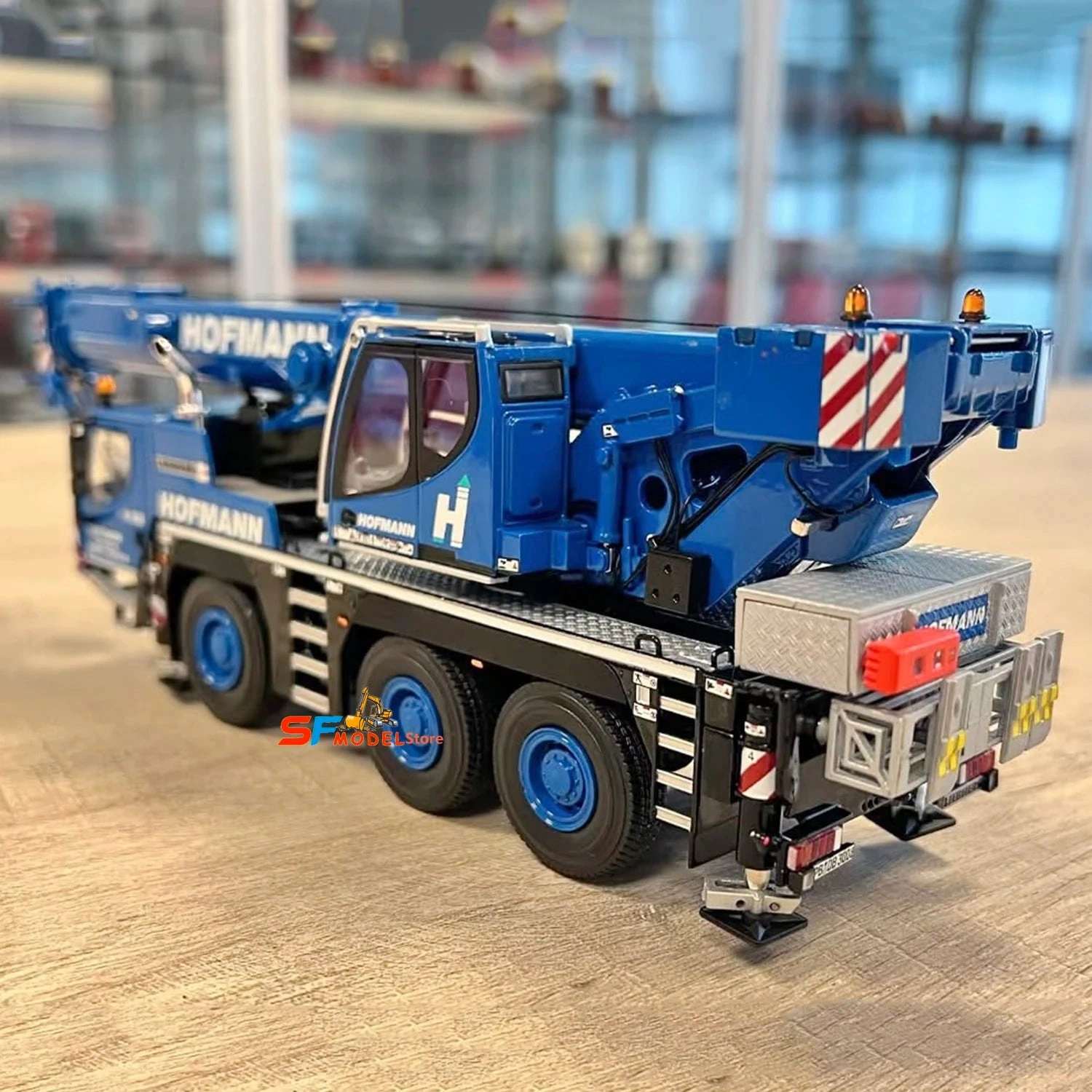

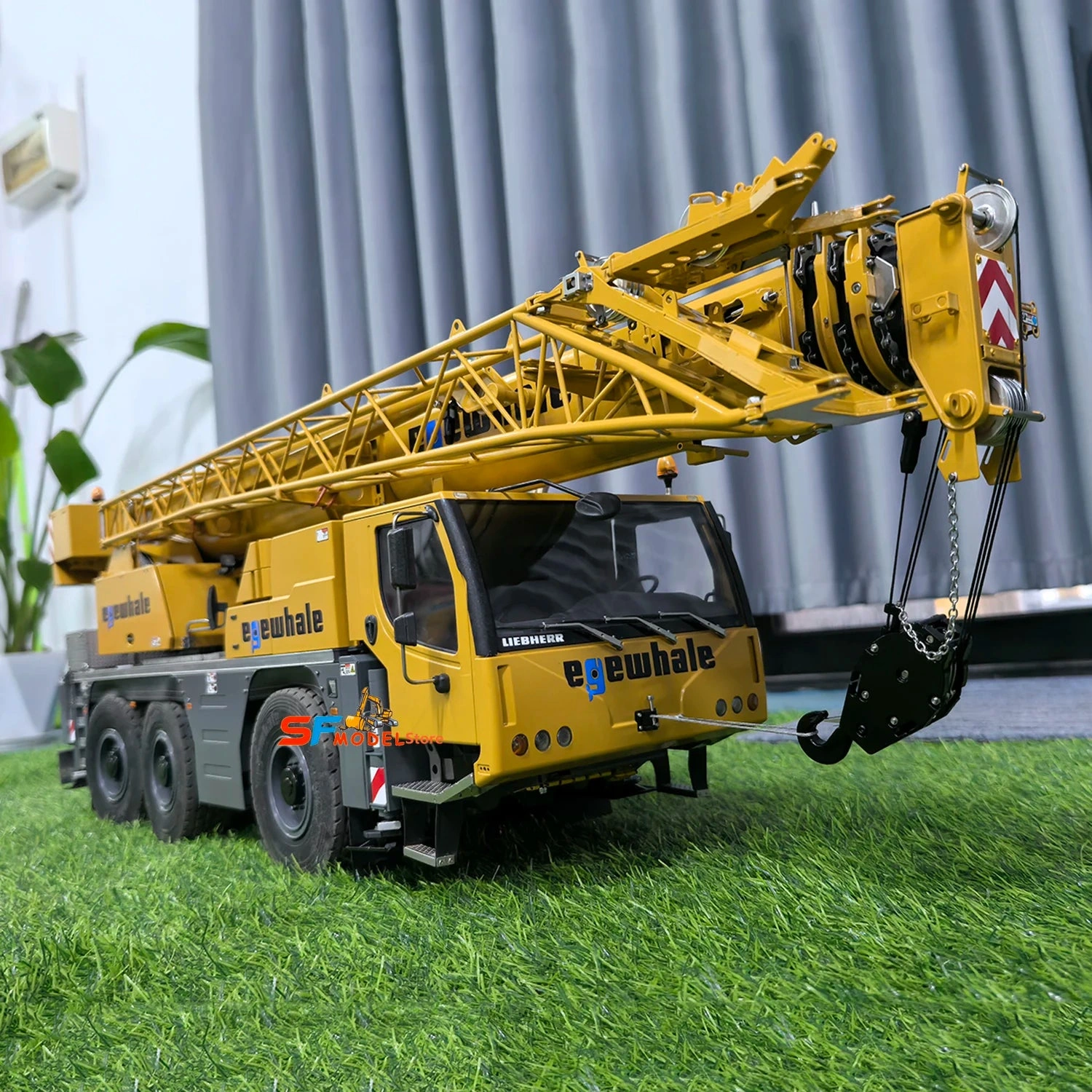

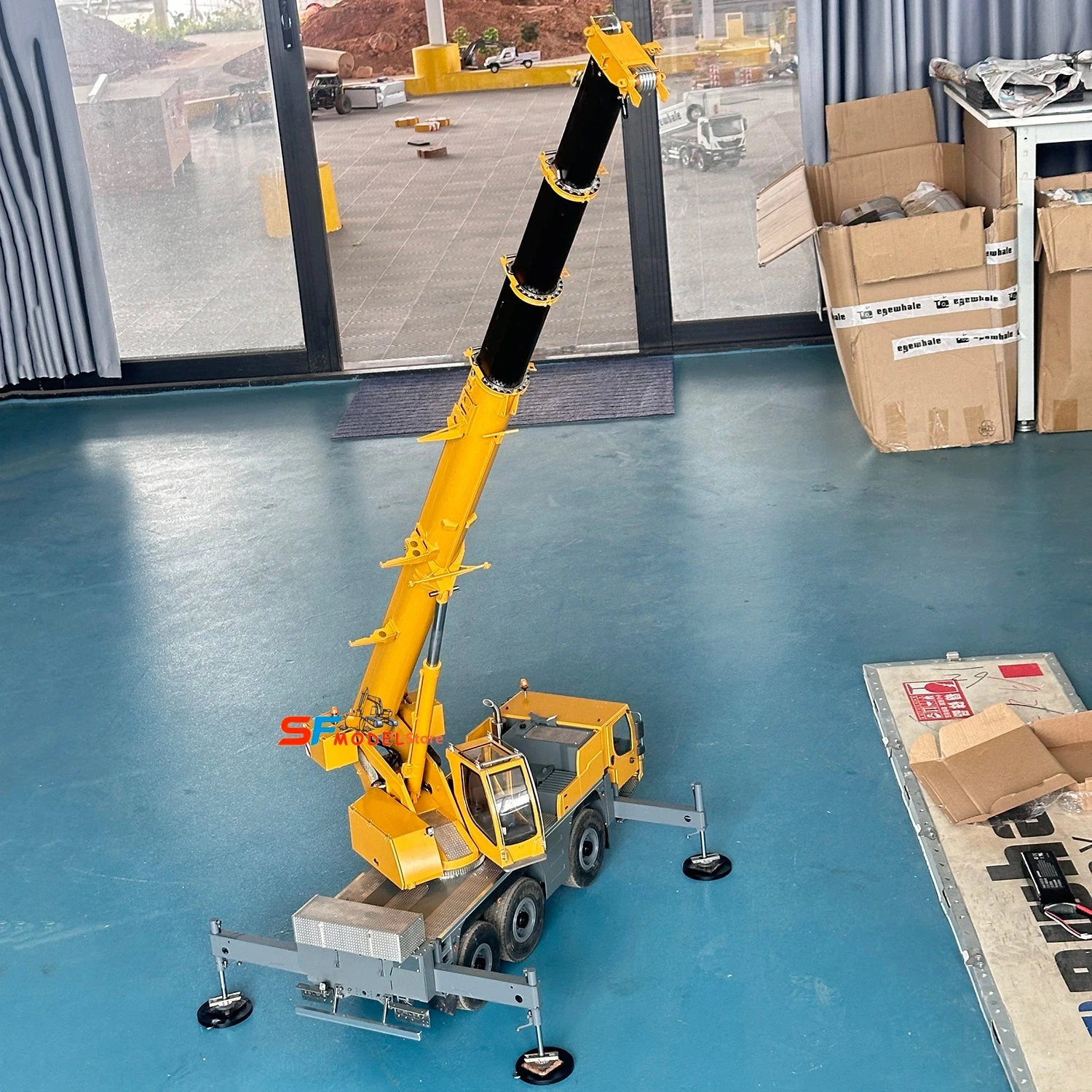

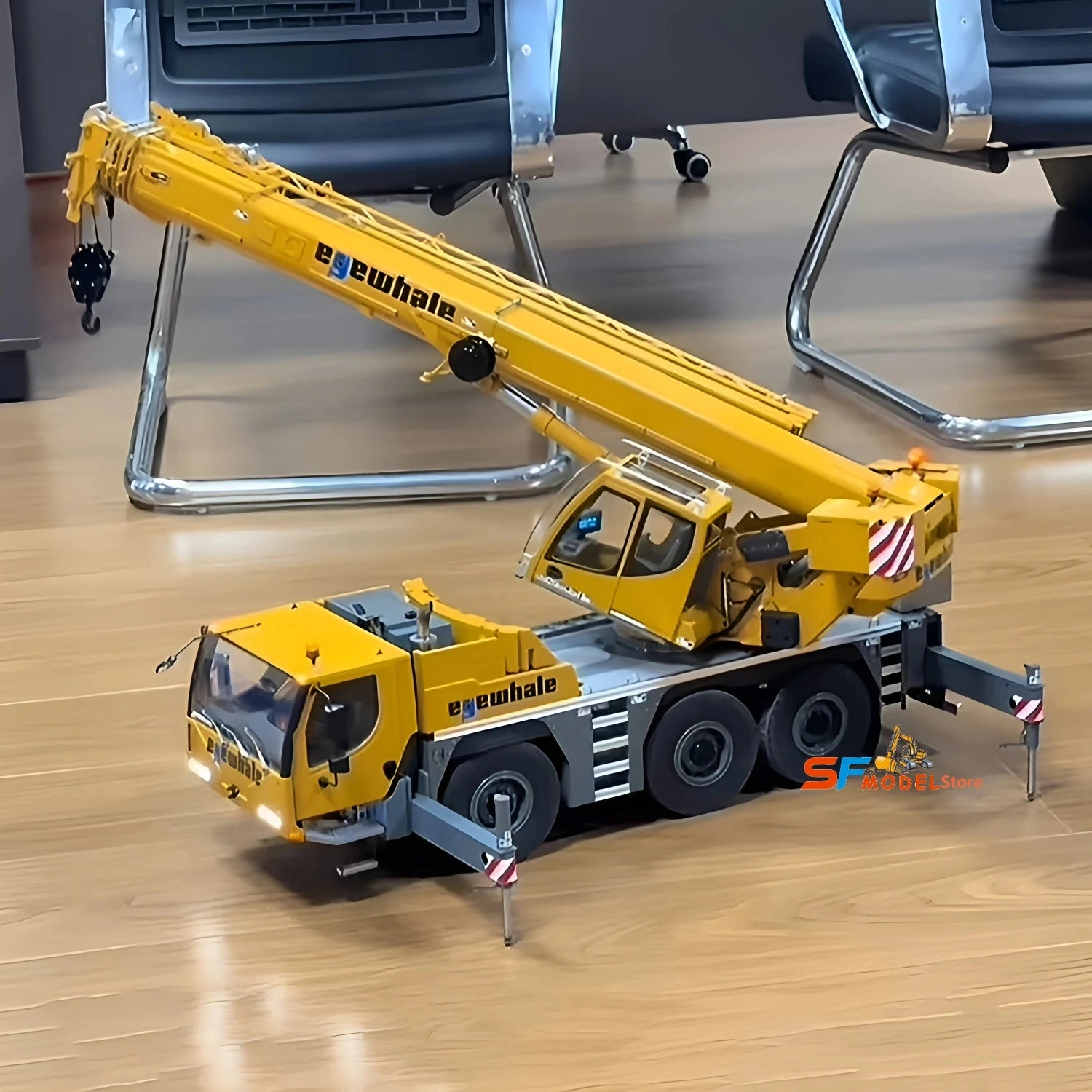

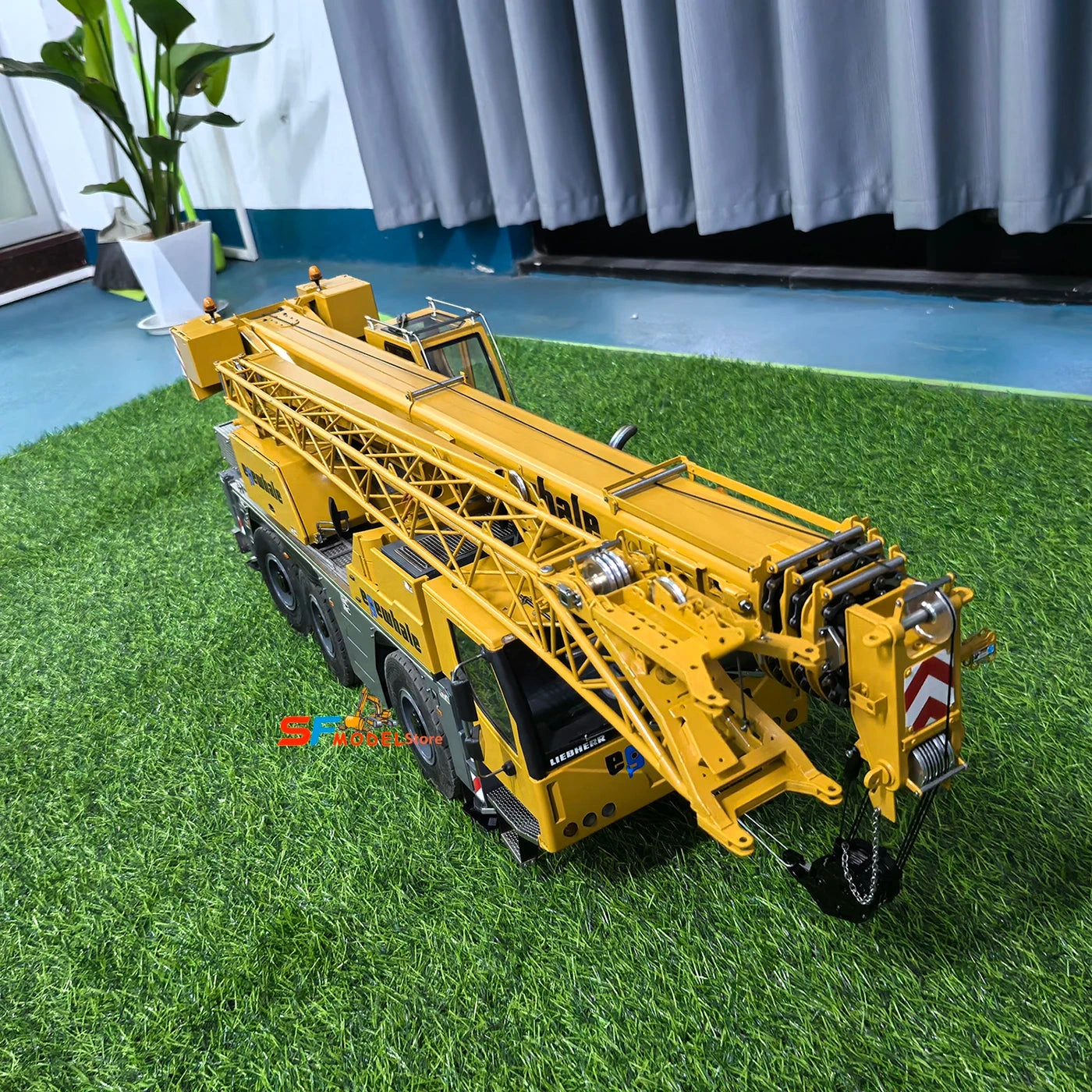

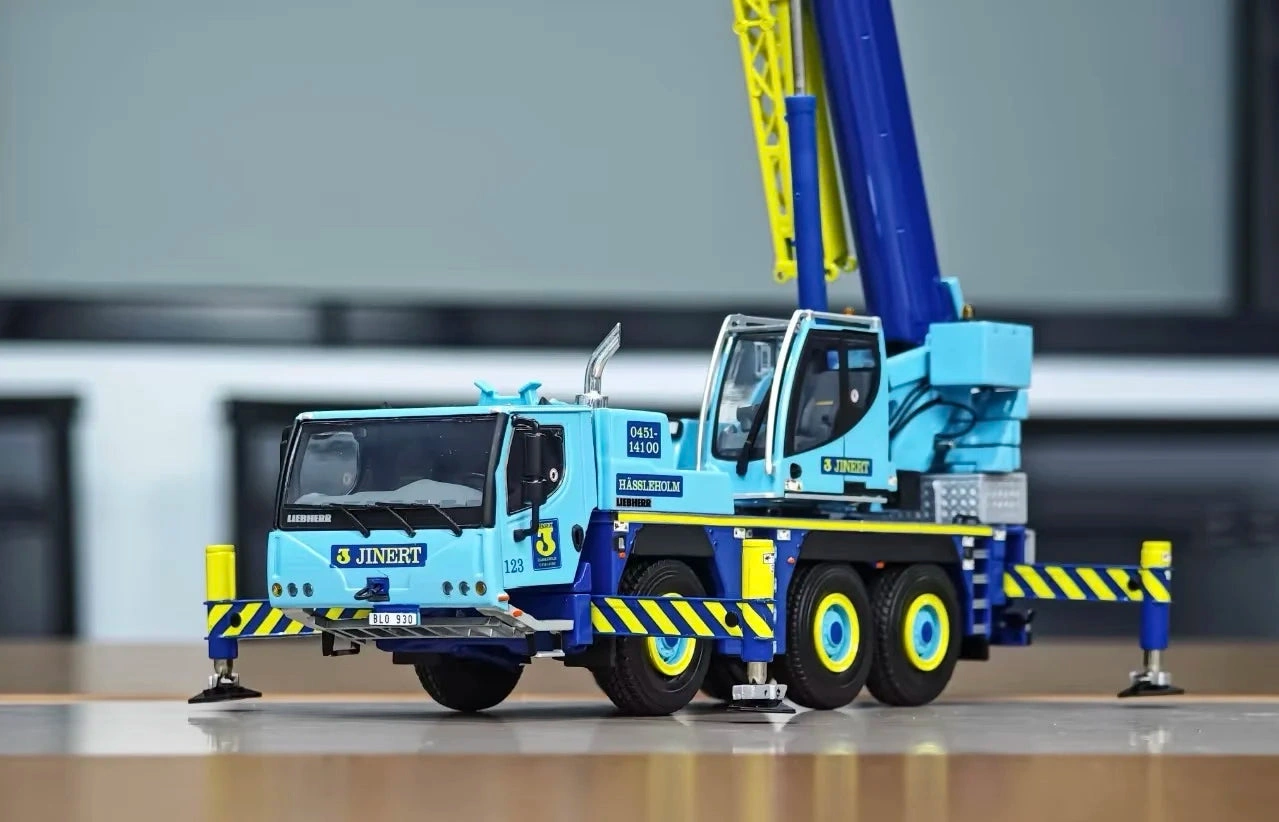

D1050 RC Crane 1/14 3-axis Remote Control Hydraulic Crane Engineering Heavy Machinery Metal Model All Terrain Crane Model Toy
#Note: Inexperienced buyers should not try to set up the remote control.
If you are not sure how to operate the product, please consult us. We have professional technicians ready to help you solve the problem.
#Specifications:
Product status: Brand new, painted and assembled
Material: Metal, Plastic
Scale: 1/14
Weight: 22.75KG
Overall dimensions of the crane (mm): 842x183x275 (length, width and height)
#Package includes:
1/14 mobile crane model
Motor
Servo
Electric speed controller
Hydraulic system
Sound system
Lighting system
FlySky PL18EV remote control and receiver
#The Package Does Not Include:
Battery
Charger
Hydraulic Oil
Product technology:
Technology: stainless steel laser cutting, laser welding, CNC technology；
Tire: thickened tire, supporting 22.5kg body weight；
Chassis: hydraulic lifting chassis, all-wheel drive, all-wheel steering, differential lock, turning radius 400mm；
Remote control: FS PL18EV remote control；
Receiver：Three 12-channel receivers (two for chassis, one for body)；
Sound group & light group: angry bear sound group & light group；
Travel ESC: Haoying 60A travel ESC；
Motor: 3060 internal brushless motor plus planetary second gear gearbox；
Steering power supply: Haoying 15AUBEC steering independent power supply；
Drive & steering: 6X6 all-wheel drive & all-wheel steering (four steering modes)；
Drive shaft: three-axis wheel-side reduction drive shaft (with differential & differential lock)；
Hydraulic system: hydraulic Chassis lifting and lowering, three-way hydraulic valve hydraulic horizontal outrigger & hydraulic vertical outrigger, upper body four-way hydraulic valve (driving pitch/main arm pitch/telescopic arm/counterweight lifting)；
Telescopic arm: single cylinder rope row free telescopic arm (maximum 2750m), outer arm stainless steel, inner arm 7075 aluminum alloy；
Truss: standard variable amplitude truss (maximum 3800mm)；
Slewing system: brushless plus planetary reduction slewing；
Wind: brushless plus planetary winch；
Cab: screen display；
Electric speed control: three-in-one brushless electric speed control (30A)；
