Hydraulic RC Tractor – 1/5 Scale Construction Toy Remote Control Car!
“Unleash your inner wanderer with the Nomad’s Compass – a handcrafted leather journal designed for capturing the spontaneous moments of life’s greatest adventures. Its rich, earthy tones and supple, full-grain leather will become your trusted companion as you scribble down sun-drenched memories, secret dreams, and unexpected discoveries. More than just a notebook, it’s a portal to possibility. Start your story today.”

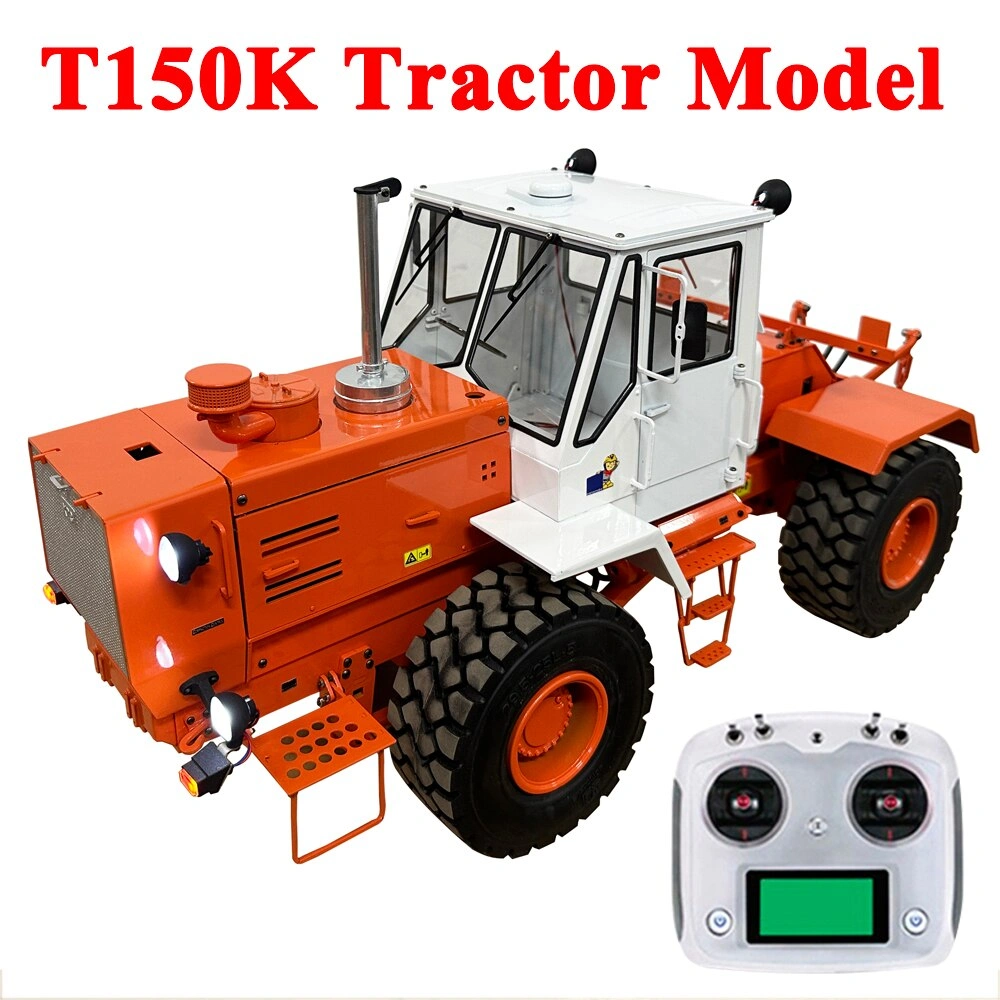

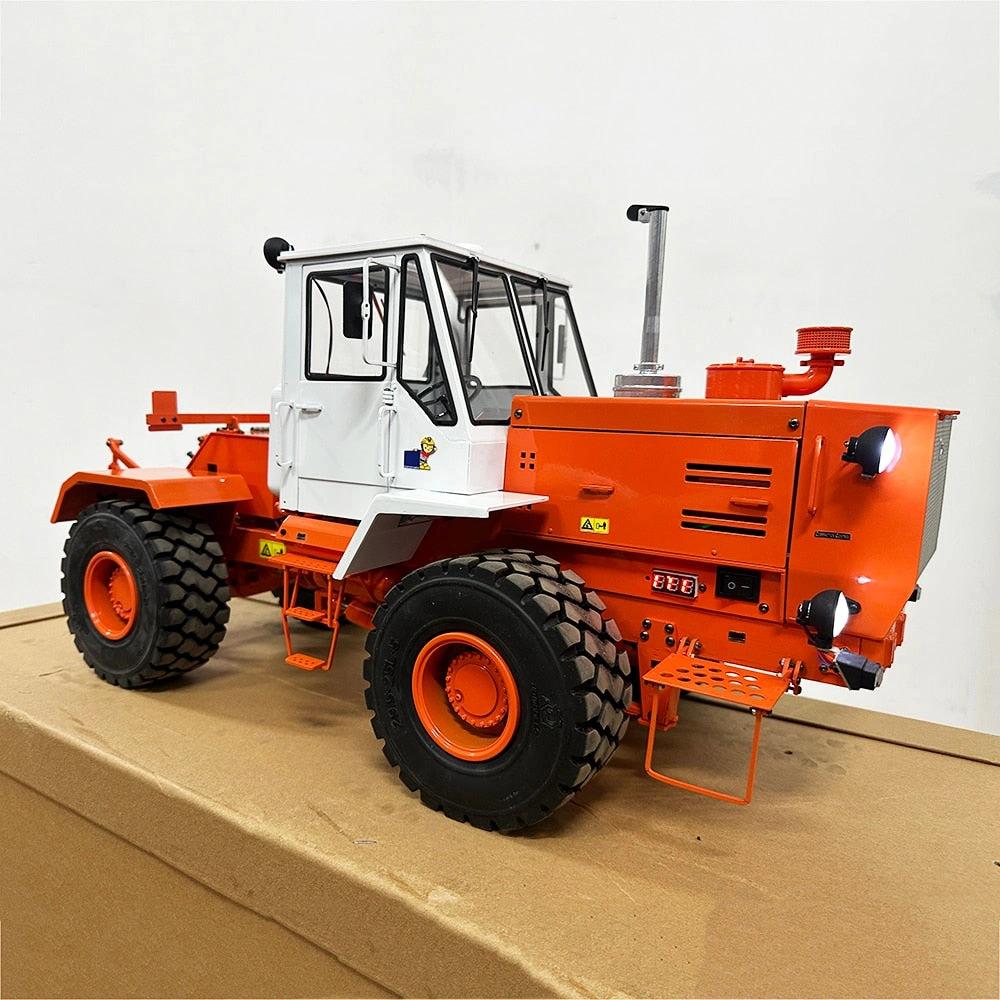

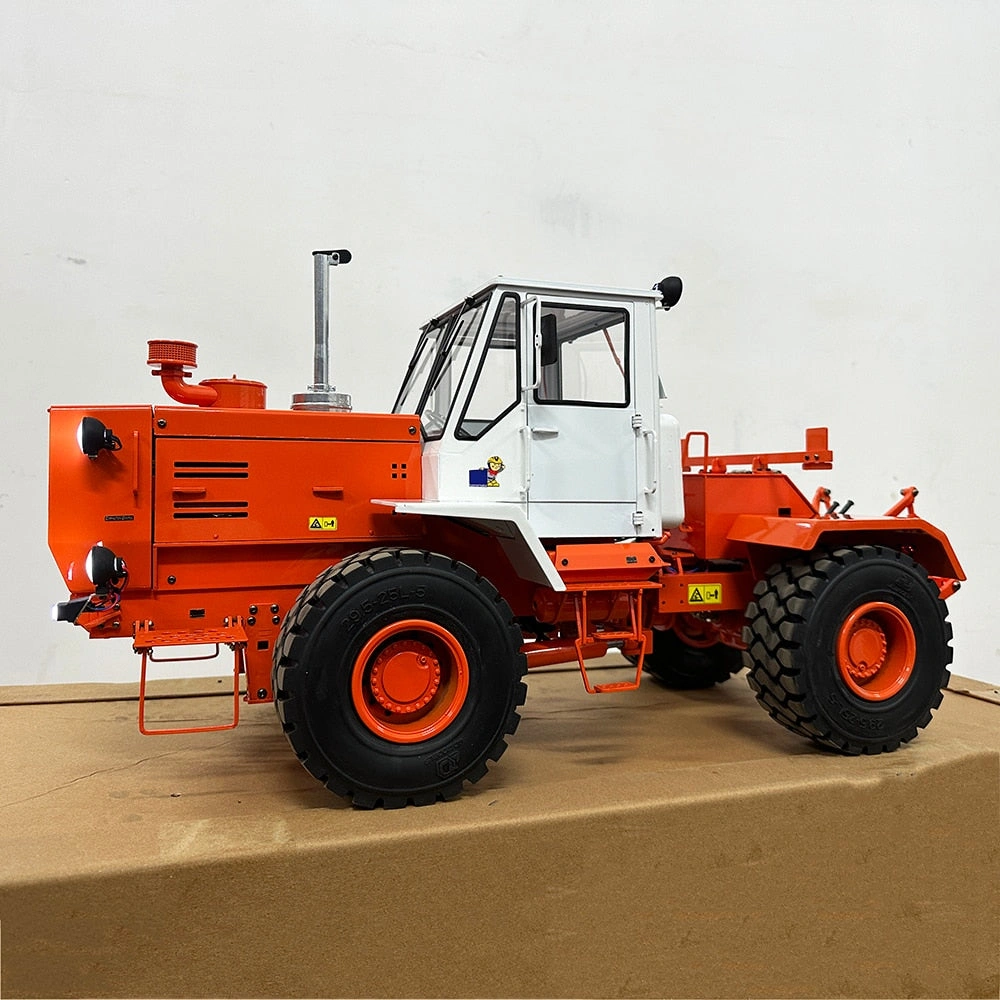

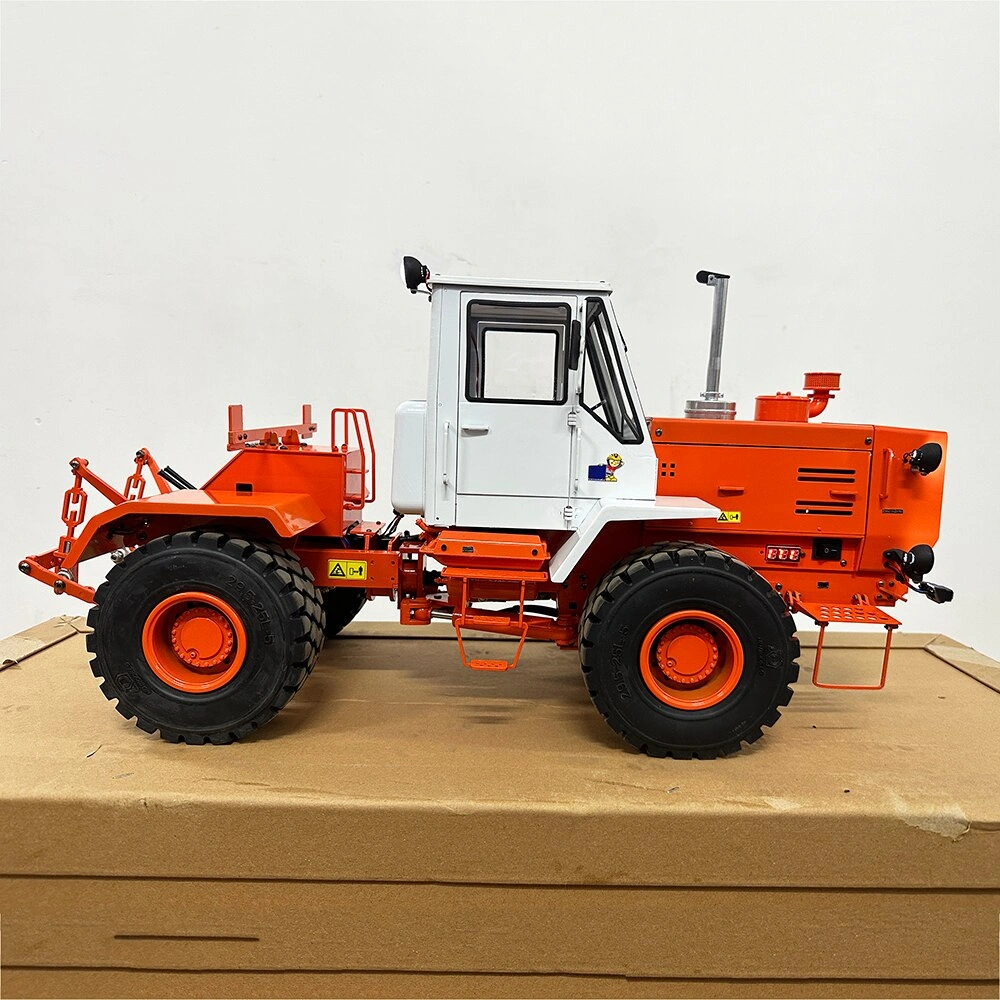

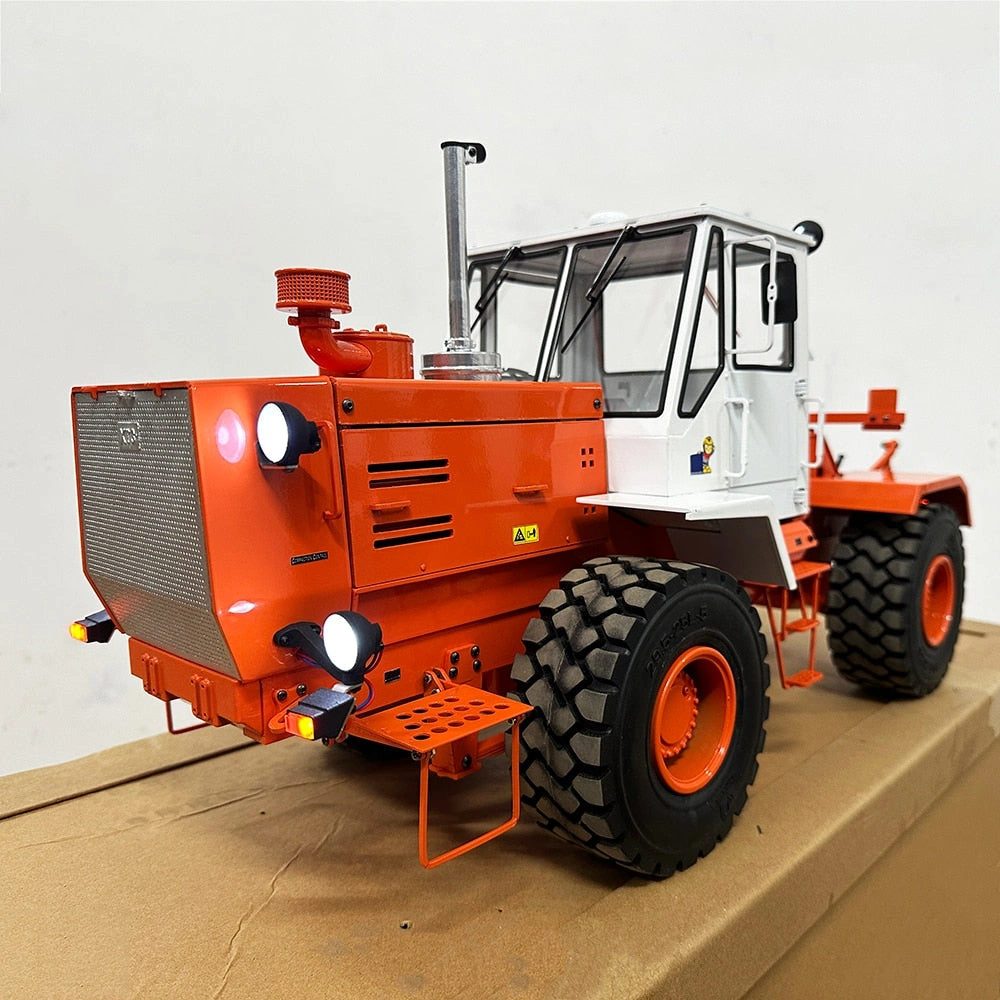

T150K 1/5 Wheeled RC Hydraulic Tractor Model Construction Machinery Remote Control Car Transporter Model Toy
Vehicle version: The whole vehicle has electronic equipment, hydraulic system remote control (battery needs to be prepared by the player)
Net weight: 35 catties
The whole vehicle plus packaging is about 28 kg
Material- body: steel plate, aluminum alloy, etc.
Transmission system: 550 two-speed planetary gear transmission + wheel side reduction axle
Hydraulic pump: integrated hydraulic pump (factory 3mpa)
Hydraulic valve: plug valve, standard 3-way valve
Hydraulic cylinder: stainless steel and brass
Body size: length*width*height: 702*330*250mm (transportation dimensions)
The maximum lifting force of the suspension is 10KG
Steering form: hydraulic steering
The minimum ground clearance of the chassis is 37 (mm)
Power supply voltage: 12V, use 3S lithium battery 5200MHA
Hydraulic pump: flow rate 1.2L/MIN, rated pressure 3.5MPA
(The hydraulic system uses No. 46 hydraulic oil by default)
Reversing valve: 3-way mid-position oil return high-power digital steering gear reversing valve
ESC: oil pump ESC: brushless 35A
Walking ESC: 50A with brush
Paint: using car paint
